Foton Auman Fault Codes: DTC Codes & Diagnostic Guide

avtomir.site Editorial Team

The Foton Auman is one of the most widely used Chinese-made heavy trucks in long-haul freight, construction, and municipal fleets across the CIS region and other emerging markets where Chinese commercial vehicles have gained ground. Modern versions run electronic control units for the engine, transmission, brake system (ABS/EBS), and exhaust aftertreatment (SCR/AdBlue) — all of which can log fault codes (DTCs, Diagnostic Trouble Codes) when something goes wrong.

This guide covers the main DTC tables, a breakdown by subsystem (Cummins engine, WABCO/Knorr-Bremse brakes, SCR aftertreatment), the diagnostic workflow, and real owner experience pulled from CIS truck-owner forums.

What Foton Auman fault codes mean

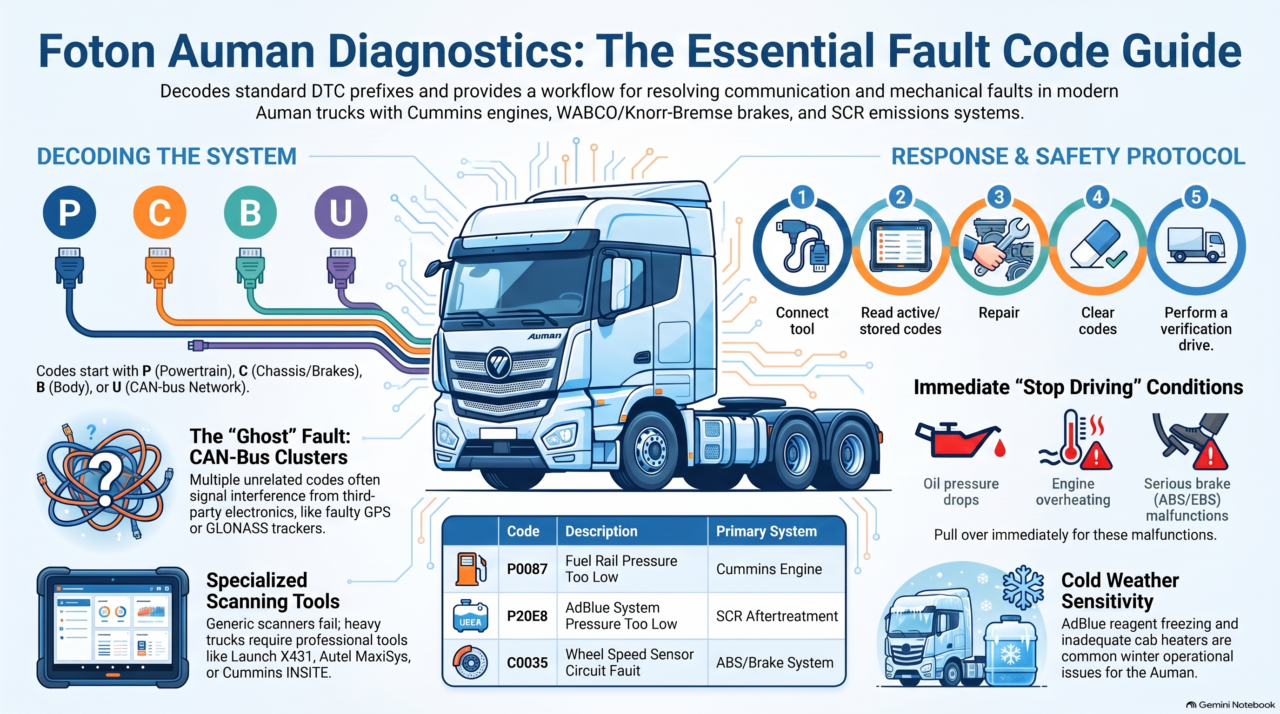

When the engine control unit (ECU) detects an out-of-range reading, it stores a fault code. Most codes follow the international OBD-II / SAE J1939 standard and start with one of these letters:

• P — engine and transmission;
• C — chassis and brake system (ABS/EBS);
• B — body electronics;
• U — network/communication faults on the CAN bus.

Depending on version and model year, Foton Auman trucks are fitted with Cummins ISF/ISG engines, while the brake electronics are most commonly built around WABCO or Knorr-Bremse components. For reliable code reading you need a scan tool that supports the Foton, Cummins, and WABCO/Knorr-Bremse protocols — a cheap generic ELM327 adapter will only surface a fraction of the codes, and without detailed descriptions.

Common Foton Auman fault code table

Cummins ISF/ISG engines in the Foton Auman

Heavier Foton Auman versions (EST, EST-A) are fitted with Cummins ISG-series engines — one configuration seen in the field is the ISG12, rated at 460 hp, with a vertical inline-cylinder layout.

Symptoms

• power loss, engine entering limp mode;
• RPM limited;
• increased fuel consumption;
• black smoke from the exhaust.

SCR and AdBlue system errors

Euro 5/6 emissions versions of the Foton Auman use an SCR system with a urea (AdBlue) tank — the capacity varies by trim, with one EST-A configuration carrying a 65-liter AdBlue tank.

Likely causes

• poor-quality or contaminated AdBlue — in the experience of technicians who service SCR systems on heavy trucks, reagent contamination remains one of the most common reasons the aftertreatment system throws a fault;
• reagent freezing in cold weather;
• SCR pump or dosing injector failure;
• NOx sensor failure.

ABS and brake system errors

On Foton Auman trucks, the brake electronics are most often built around WABCO or Knorr-Bremse components.

Code C0035 isn’t unique to Foton — it’s a standard OBD-II code used across the ABS-sensor family on many makes — and the typical cause is damaged wiring or the wheel speed sensor itself, which is consistent with how other makes with similar ABS architecture behave.

Symptoms

• ABS warning light on, sometimes together with ESP/traction-control indicators;
• longer stopping distances;
• ABS function disabled;
• EBS fault messages on the dash.

CAN-bus communication errors

Foton Auman control units communicate over a CAN bus, and communication faults are one of the most common reasons a whole cluster of unrelated-looking codes appears at once across different systems.

A real owner case

One Foton Auman H5 owner ran into exactly this kind of CAN-code cluster and worked through it methodically, ruling out possibilities one at a time. He noticed the codes appeared a few minutes after switching on the ignition — even without starting the engine — and both codes pointed to an abnormal bus data-refresh rate, which hinted at a communication issue between modules. The eventual cause turned out to be the truck’s GLONASS telematics unit: a faulty modem inside the unit was triggering repeated reboots, and each reboot briefly choked the CAN bus, throwing errors in other systems. After removing the unit and having it repaired by the manufacturer, the problem didn’t return.

It’s a good illustration of a broader point: when CAN codes show up across several systems at once, it’s worth checking not just the “obvious” subsystem (engine, ABS) but also any third-party equipment tied into the bus — telematics units, GPS trackers, alarm/immobilizer modules.

Source: paraphrased from an owner’s build log — full original (Russian-language) on DRIVE2.

General causes of CAN errors

• CAN wiring damage;
• corroded connector contacts;
• a failed control module;
• low battery voltage;
• third-party equipment tied into the bus (trackers, alarms).

How Foton Auman fault codes are read

Technicians working on Chinese-made heavy trucks typically use: Launch X431, Autel MaxiSys, Jaltest, TEXA Navigator, Cummins INSITE (for Cummins engines), and WABCO Diagnostic Software / Knorr-Bremse diagnostic tools (for the brake electronics).

Based on one technician’s side-by-side comparison of two professional scan tools (FCAR F7S-G and IDUTEX TS910 PRO) on a Foton Auman tractor unit, the more expensive tool in some cases surfaced the full data set — including codes the simpler adapter didn’t read at all — which underlines the general point that a generic consumer-grade scanner often won’t show the complete picture on heavy trucks.

Diagnostic workflow

1. Connect the scan tool to the diagnostic connector (usually under the dash, to the left of the steering column).
2. Turn the ignition on without starting the engine.
3. Read both active and stored codes.
4. Note the conditions under which the code appears (right after ignition-on, under load, at idle).
5. After the repair, clear the codes and run a verification drive — some codes (ABS sensor codes, for example) only clear once the vehicle drops below a certain speed threshold, not immediately after being cleared with the scan tool.

Is it safe to keep driving with the Check Engine light on?

It depends on the type of fault.

You can generally keep driving (but plan a diagnostic check soon) with:

• a single, non-recurring sensor fault;
• a brief CAN communication dropout that doesn’t come back;
• a single EGR fault with no power loss.

You should stop immediately for:

• a drop in oil pressure;
• engine overheating;
• critical fuel-rail pressure faults (too high or dangerously low);
• any serious brake system fault (ABS/EBS light on together with reduced braking performance).

Real Foton Auman owner experience

Taken together, these two reviews show the real spread in Foton Auman ownership experience: from a broadly workable truck with the kind of teething issues common to the segment (cab heater, SCR’s cold sensitivity) to a genuinely troublesome unit with frequent breakdowns. Given that spread, anyone shopping for a used Foton Auman should check the service history carefully and, where possible, run a full computer diagnostic before buying — it’s a necessary step, not a formality.

Preventing Foton Auman faults

• use good-quality diesel and certified AdBlue reagent;
• replace fuel filters on schedule;
• keep an eye on battery condition and system voltage — many CAN and SCR faults are triggered by voltage sag;
• clean the EGR system regularly and don’t let it coke up severely;
• keep the turbocharger and intercooler in good condition;
• run a computer diagnostic every 20,000–30,000 km, not just when Check Engine comes on;
• if the truck has third-party telematics installed (GPS/GLONASS trackers, alarms) and CAN-bus codes start appearing in clusters, check that equipment first before pulling apart factory control modules.

Conclusion

Foton Auman fault codes make it possible to narrow down a problem quickly and cut downtime. Based on shop experience and owner reviews, the most common issues involve the fuel system, turbocharging, EGR/DPF, and the AdBlue system, along with CAN-bus code clusters caused by third-party equipment. If Check Engine comes on, running a professional scan tool as soon as possible is worth it — a consumer-grade adapter often only shows part of the picture.

Frequently asked questions

Sources

• DRIVE2 (Russian-language) — Foton Auman H5: engine warning light on (CAN code breakdown, GLONASS unit)
• DRIVE2 (Russian-language) — FCAR F7S-G vs. IDUTEX TS910 PRO scan tool comparison on a Foton Auman tractor unit
• Drom.ru (Russian-language) — Foton Auman EST-A owner review, Novosibirsk, Cummins ISG12 460 hp
• Autonavigator.ru (Russian-language) — Foton Auman (dump truck) owner review, Lesosibirsk, 2014
• Rechip.ru (Russian-language) — technical description of the soot sensor and DPF regeneration process on the Foton Auman
• Rechip.ru (Russian-language) — technical description of the EGR valve and its role in DPF operation on the Foton Auman
• Terratruck.ru (Russian-language) — common Foton truck fault codes
• OBD.avto.pro (Russian-language) — explanation of code C0035 (ABS wheel speed sensor)

This article was prepared by the avtomir.site editorial team based on publicly available technical sources and heavy-truck owner reviews. Fault code data is for reference only — for your specific Foton Auman configuration, confirm codes with an official dealer or the service documentation for your VIN.
