Author: Automotive expert specializing in Chinese vehicles, with hands-on experience in diagnostics, maintenance, and real-world operation of ICE, hybrid, and electric models.
avtomir.site Editorial Team · Updated September 2026
If the Check Engine, ABS, transmission, airbag, or another warning light has appeared on your Geely, the first step is to find out which fault code the car has stored.
A Geely diagnostic system can record dozens of different Diagnostic Trouble Codes (DTCs). Some are minor; others point to problems with the engine, transmission, braking system, airbags, electronic control units, or communication between vehicle modules.
Importantly, a fault code is not always the failed part itself — it tells you which system or circuit detected an abnormal condition. The actual cause may be a sensor, wiring, connector, power supply, software issue, mechanical fault, or another component entirely.
This guide explains the most common Geely error codes, what they mean, how to diagnose them, and when it is safe to keep driving.
Scope note: The codes covered below (P-, B-, C-, and U-codes) are standardized SAE/ISO OBD-II codes shared across virtually all modern manufacturers, including Geely. This guide does not claim access to Geely-specific proprietary fault data; where a diagnosis genuinely depends on a specific Geely model, engine, or market, that is called out explicitly rather than assumed.
Modern Geely vehicles use multiple electronic control modules to monitor the engine, transmission, ABS, airbags, body electronics, and other systems. When a module detects a problem, it stores a Diagnostic Trouble Code (DTC) in memory — codes such as P0420, P0300, P0301, P0171, P0016, or U0100.

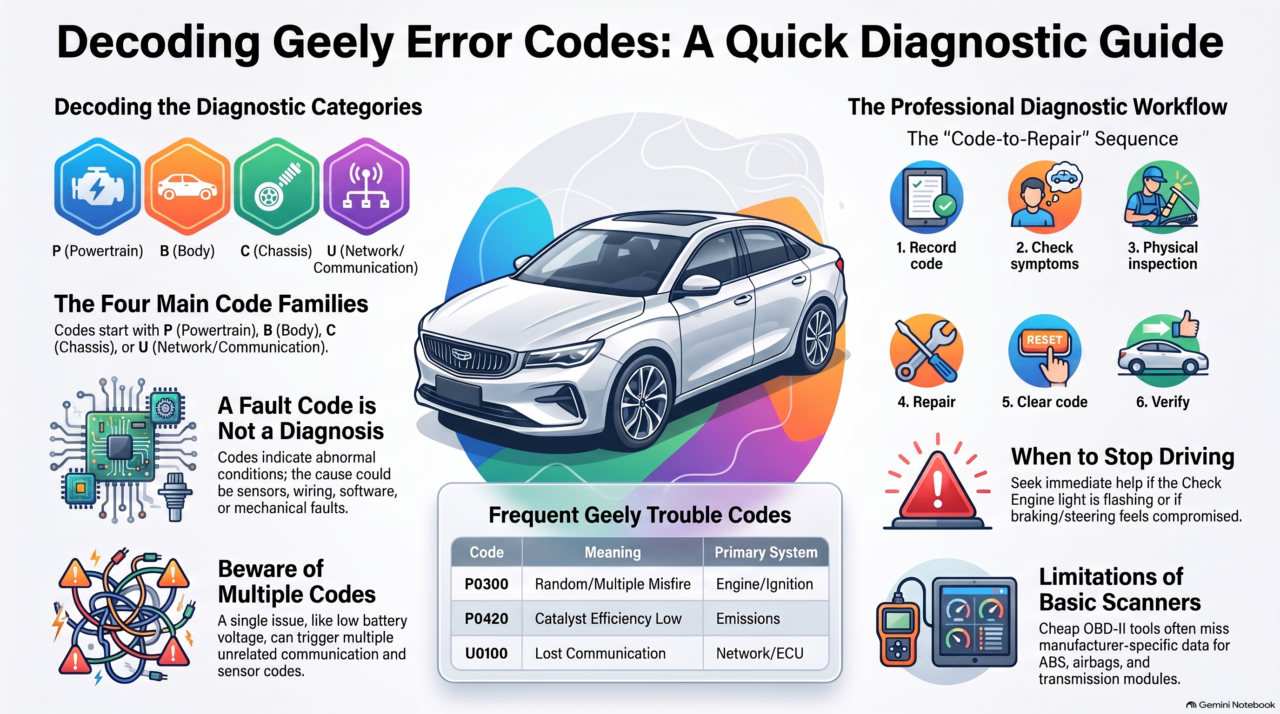

The first letter indicates the general system involved.
P — Powertrain
P-codes cover the engine, transmission, and emissions system. Examples: P0300 (random/multiple misfire), P0420 (catalyst efficiency below threshold), P0171 (system too lean), P0016 (crankshaft/camshaft correlation).
B — Body
B-codes generally relate to body electronics: airbags, seat belts, doors, climate control, lighting, interior electronics, and body control modules.
🚗 Special Deals & Discounts
Latest prices on vehicles, spare parts and dealer promotions.
C-codes are associated with chassis systems: ABS, electronic stability control, steering, suspension, and braking systems.
U — Network and Communication
U-codes indicate communication problems between electronic control modules — a module can’t talk correctly with another over the vehicle’s network. A U-code does not automatically mean the ECU itself has failed. Possible causes include low battery voltage, damaged wiring, loose connectors, poor grounding, water intrusion, network faults, or software problems.
How to Read Error Codes on a Geely
1. OBD-II Scanner
The diagnostic connector is usually located under the dashboard. A basic OBD-II scanner can typically read generic powertrain (P0xxx) codes, but it may not fully communicate with ABS, airbag, transmission, body control, parking, or advanced driver-assistance modules. For deeper diagnosis, a scanner capable of talking to multiple vehicle modules is preferable.
2. Professional Diagnostic Equipment
A professional tool can let a technician read manufacturer-specific codes, identify which module stored the fault, view live sensor data, check freeze-frame information, run actuator tests, clear fault memory, perform certain service procedures, and monitor inter-module communication. This matters most when several warning lights appear together or a U-code shows up.
Important: A Fault Code Is Not a Diagnosis
Suppose your Geely reports P0420. That does not automatically mean “replace the catalytic converter.” The code only indicates that the control system detected a catalyst-efficiency problem. Possible causes include catalytic converter degradation, exhaust leaks, oxygen sensor problems, an incorrect air-fuel mixture, engine misfires, fuel system problems, or oil/coolant contamination.
Replacing an expensive part before further testing can be a costly mistake. The correct sequence is:
Code → symptoms → live data → physical inspection → diagnosis → repair → code verification.
Common Geely Error Codes
Code availability and interpretation can vary by model, engine, ECU software, and market.
P0300 — Random or Multiple Cylinder Misfire
Meaning: The engine control system has detected misfires on multiple cylinders or occurring randomly.
Symptoms: rough idle, engine vibration, hesitation on acceleration, reduced power, higher fuel consumption, a flashing Check Engine light. A severe misfire can overheat the catalytic converter.
What to check: read all stored codes; check for individual-cylinder misfire codes; inspect spark plugs and ignition coils; check fuel delivery; look for intake/vacuum leaks; check live engine data. If the light is flashing and the engine runs very roughly, continued driving can cause additional damage.
P0301 — Cylinder 1 Misfire
Meaning: A misfire has been detected specifically on cylinder 1. Possible causes: spark plug or ignition coil failure, injector problems, wiring faults, vacuum leaks, low compression, or valve/mechanical issues. Swapping a suspect ignition coil to another cylinder and seeing whether the fault code “follows” the part is a useful diagnostic technique.
P0171 — System Too Lean
Meaning: Too much air or not enough fuel relative to the expected mixture.
Possible causes: vacuum or intake leaks, a dirty/defective airflow sensor, fuel pressure problems, a restricted injector, an exhaust leak near an oxygen sensor, or incorrect sensor readings.
Symptoms: rough idle, hesitation, reduced performance, higher fuel consumption, Check Engine light. Don’t automatically replace the oxygen sensor — first investigate air leaks, fuel pressure, and fuel-trim data.
P0420 — Catalyst System Efficiency Below Threshold
Meaning: The control system believes the catalytic converter (bank 1) is operating below expected efficiency — one of the most frequently searched DTCs across all manufacturers.
Possible causes: a degraded catalytic converter, a faulty oxygen sensor, an exhaust leak, engine misfires, an incorrect fuel mixture, excessive oil consumption, or coolant entering the combustion chamber.
Symptoms: sometimes none beyond the warning light; sometimes reduced performance, higher fuel consumption, or exhaust-related symptoms.
Diagnosis: check for additional codes, inspect the exhaust for leaks, check oxygen sensor operation, review fuel-trim data, check for prior misfires, compare upstream/downstream O2 sensor behavior, and evaluate catalytic converter performance before replacing it.
P0016 — Crankshaft/Camshaft Position Correlation
Meaning: The engine control module detected a correlation problem between crankshaft and camshaft position signals, which directly affects engine timing.
Possible causes: timing chain problems, incorrect mechanical timing, a faulty camshaft or crankshaft position sensor, wiring issues, damaged reluctor/trigger components, or oil-pressure/variable-valve-timing problems.
Symptoms: hard starting, rough running, reduced power, poor fuel economy, Check Engine light, stalling. If P0016 appears with unusual noise or starting problems, professional diagnosis is recommended.
P0101 — Mass Air Flow Sensor Range/Performance
Indicates measured airflow doesn’t match what the engine control system expects. Possible causes: a dirty or defective MAF sensor, intake leaks, damaged wiring, incorrect sensor readings, or air filter/throttle-related issues. Inspect the intake system and connections before replacing the sensor.
P0113 — Intake Air Temperature Sensor High Input
Indicates an abnormally high signal from the intake air temperature sensor circuit. Possible causes: a disconnected sensor, damaged wiring, poor connector contact, a failed sensor, or an electrical circuit problem. This can distort fuel-mixture calculations and engine performance.
P0130 — Oxygen Sensor Circuit Malfunction
Relates to an oxygen sensor circuit fault. Possible causes: sensor failure, wiring damage, connector problems, exhaust leaks, electrical supply issues, or genuine mixture-related problems. Proper diagnosis should determine whether the sensor itself is faulty or is correctly reporting a real engine issue.
U0100 — Lost Communication With ECM/PCM
Indicates a communication problem involving the engine or powertrain control module — this should not immediately be read as “the ECU is broken.” Possible causes: low or weak battery voltage, poor grounding, damaged wiring, loose connectors, CAN communication problems, a power-supply interruption, module software issues, or (less commonly) actual module failure. If several unrelated warning lights appear together, check battery voltage and connections before replacing electronic modules.
ABS and Chassis Error Codes
Geely vehicles can also store C-type codes tied to ABS, stability control, steering, and other chassis systems.
Symptoms: ABS or ESC warning, traction-control warning, steering warning, changes in braking behavior.
Possible causes: wheel-speed sensor problems, damaged sensor wiring, incorrect wheel-speed readings, ABS module faults, low battery voltage, steering-angle calibration issues, or damaged tone rings. A generic OBD-II scanner may not access all ABS-related codes; a tool capable of communicating with the ABS/ESC module is often required.
Geely Transmission Error Codes
Transmission faults are particularly relevant on Geely vehicles with automated or dual-clutch transmissions.
Symptoms: delayed gear engagement, harsh shifting, a transmission warning, inability to select a gear, slipping, abnormal clutch behavior, limp mode.
Possible causes depend heavily on the transmission design: fluid problems, clutch wear, actuator faults, solenoid problems, sensor failures, wiring issues, control-module faults, or software/adaptation problems. A transmission code should always be interpreted alongside the exact transmission model and vehicle specification.
Why Does a Geely Show Multiple Error Codes?
Several codes at once don’t necessarily mean several components failed simultaneously — a single underlying issue can generate multiple DTCs. Low battery voltage, for example, can cause several modules to report communication or sensor-related faults. Other common causes of multiple codes: alternator problems, poor grounding, water intrusion, damaged wiring, CAN communication problems, or one failed module affecting others. This is why it’s important to record all codes before clearing them.
What Is Freeze-Frame Data?
Some diagnostic systems store freeze-frame information at the moment a fault occurs — engine speed, vehicle speed, coolant temperature, calculated load, fuel trims, or sensor readings. This can help determine whether the problem occurred during cold start, idle, acceleration, cruising, or high load, and is especially useful for intermittent problems.
Should You Clear a Geely Error Code?
You can clear a code with suitable diagnostic equipment, but clearing it does not repair the underlying problem. If the fault remains, the code will likely return (P0300 → clear → drive → P0300 returns). Clearing codes also erases useful stored and freeze-frame data, so it’s usually better to diagnose and record the fault first.
How to Reset the Check Engine Light on a Geely
Connect the diagnostic scanner.
Switch the ignition on.
Establish communication with the appropriate control module.
Read and record stored codes.
Repair the underlying problem.
Clear the diagnostic trouble codes.
Start the engine.
Check whether the warning light returns.
Perform a road test.
Scan the vehicle again.
Some faults clear automatically once the ECU confirms the condition is gone; others stay stored until cleared with diagnostic equipment.
Can You Disconnect the Battery to Reset a Geely?
Disconnecting the battery is sometimes suggested as a quick reset, but it is not a substitute for proper diagnostics. Depending on the vehicle, it can erase learned settings, reset clocks and other settings, affect electronic systems, erase useful diagnostic data — and it won’t permanently remove the underlying fault. If the light returns, the problem is still there. A compatible diagnostic scanner is generally the better approach on modern Geely vehicles.
Is It Safe to Drive With a Geely Error Code?
It depends entirely on the code and symptoms.
Usually less urgent: a steady (non-flashing) Check Engine light, an emissions-related code, a minor sensor fault, or an intermittent electronic fault — though the vehicle should still be diagnosed.
Potentially urgent — stop driving or seek help: a flashing Check Engine light, severe engine vibration, loss of braking assistance, a serious transmission malfunction, overheating, an oil-pressure warning, severe power loss, unusual engine noise, or an airbag warning combined with other safety-system faults. The warning light alone doesn’t indicate severity — symptoms matter.
Why Geely Error Codes Can Differ Between Models
Geely builds vehicles with different engines, transmissions, electronic architectures, and software versions, so the diagnostic procedure for the same code can vary — for example between the Geely Coolray, Monjaro, Atlas, Tugella, or Emgrand, and between production years and markets. A code should always be read together with: model + model year + engine + transmission + exact DTC.
Geely Error Code Diagnostic Checklist
Don’t immediately clear the code — record the exact code first.
Check for additional codes — a second or third code may explain the first.
Record the symptoms — when it occurs, engine temperature, vehicle speed, load, whether the engine starts and the transmission shifts normally.
Use live data — sensor values can reveal what a code alone can’t.
Repair the root cause — don’t replace expensive parts just because a related code appeared.
Clear the code and retest — after the repair, clear the fault and road-test the car.
Scan again — confirm the fault hasn’t returned.
Geely Error Codes: Quick Reference
Code
General meaning
Possible area
P0300
Random/multiple cylinder misfire
Ignition, fuel, engine
P0301
Cylinder 1 misfire
Ignition, injector, compression
P0171
System too lean
Intake, fuel, sensors
P0420
Catalyst efficiency below threshold
Exhaust/emissions
P0016
Crankshaft/camshaft correlation
Timing/sensors
P0101
MAF range/performance
Air intake/MAF
P0113
Intake air temperature sensor high input
Sensor/wiring
P0130
Oxygen sensor circuit malfunction
O2 sensor/wiring
U0100
Lost communication with ECM/PCM
CAN/electrical/ECU
C-codes
Chassis-related faults
ABS/ESC/steering
B-codes
Body-related faults
Airbag/body electronics
This table is a starting point — always verify the exact DTC and vehicle configuration before performing repairs.
Frequently Asked Questions
What is the most common Geely error code?
There is no single code common to every Geely model. Frequently seen codes involve misfires, emissions, sensors, timing, and communication faults; the actual frequency depends on the specific model, engine, transmission, mileage, and operating conditions.
Can I read Geely error codes with a cheap OBD-II scanner?
A basic scanner can often read generic powertrain (P-)codes, but it may not access manufacturer-specific information or modules like ABS, airbags, transmission, or body electronics.
Does an error code mean a part must be replaced?
No. A code identifies a detected condition or circuit problem; the actual failed component must be confirmed through further testing.
Can I continue driving with the Check Engine light on?
Sometimes, if the light is steady and the vehicle drives normally — but diagnosis shouldn’t be delayed unnecessarily. A flashing light, severe misfire, overheating, braking problems, or major power loss needs immediate attention.
Will disconnecting the battery erase a Geely error?
It may reset some electronic systems, but it doesn’t fix the underlying problem and can erase useful diagnostic data. Proper diagnostic equipment is preferable.
Why does the same Geely error code reappear after resetting?
Because the underlying fault wasn’t actually corrected, or the condition has returned. A reset only clears the stored code — it doesn’t repair the vehicle.
Final Thoughts
Geely error codes are valuable diagnostic clues, not a shopping list of parts to replace. The most effective approach combines the DTC, symptoms, live data, visual inspection, and vehicle-specific information.
For simple OBD-II codes, an owner can often perform an initial diagnosis with a suitable scanner. More complex problems involving the transmission, ABS, airbags, CAN communication, or electronic control modules may need professional diagnostic equipment.
If you have a specific error code, search for the exact code together with your model, engine, and year — for example, “Geely Coolray P0420,” “Geely Monjaro P0016,” or “Geely Atlas P0300.” This gives far more useful results than a generic fault description.
